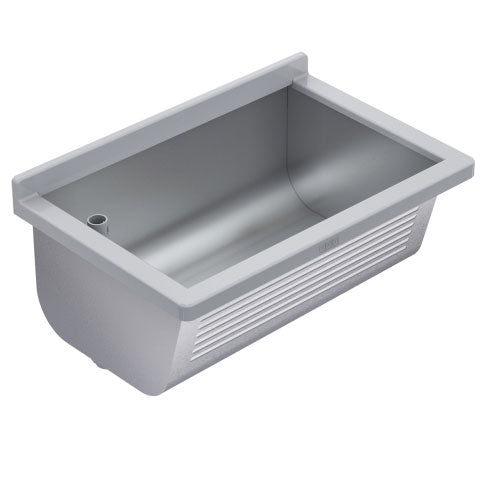

DELABIE BS311N

Wall-mounted wash trough made of stainless steel, satin finish, material thickness of trough 0.8 mm / side panels 1.2 mm, side panels with integrated mounting brackets, seamlessly welded, ribbed front panel, without tap ledge, without overflow, with grey plastic bumper, 43 mm upstand at rear, waste outlet on the left, plastic standpipe G 1 1/2 B, including fixing material.

Dimensions 700 x 328 x 460 mm (W x H x D)
Bowl dimensions 613 x 285 x 398 mm (W x H x D)

Material code 1.4301 Chrome Nickel Steel V2A
Overall depth 460.00 mm
Overall height 328.00 mm
Overall width 700.00 mm
Type of mounting Wall mounting
Bowl - bowl depth 285.00 mm
Bowl - depth 398.00 mm
Bowl - width 613.00 mm
Overflow overflow pipe
Tap ledge No
Waste size DN 40
Bowl finish SATIN-FINISHED
Type of waste kit Strainer overflow pipe
Gully No
Splashback height 45.00 mm
Outlet diameter G 1 1/2 B
Number of wash positions 1.00000
Number of washing places 1.00000
Bowl construction Square corner
Brushes WITHOUT BRUSHES
Drainer or storage area No
Grille No
Ribbed Yes
Sludge trap No
Sludge trap basket No
Type of utility block Multi-purpose sink
Sludge trap basket No
ATT-WS-TYPEWATCON 20191231.00000
