Type of fastening
- for wall supports and hinged support rails 950... / 802 LifeSystem series
- for hinged seats from the 802 LifeSystem and System 900 series

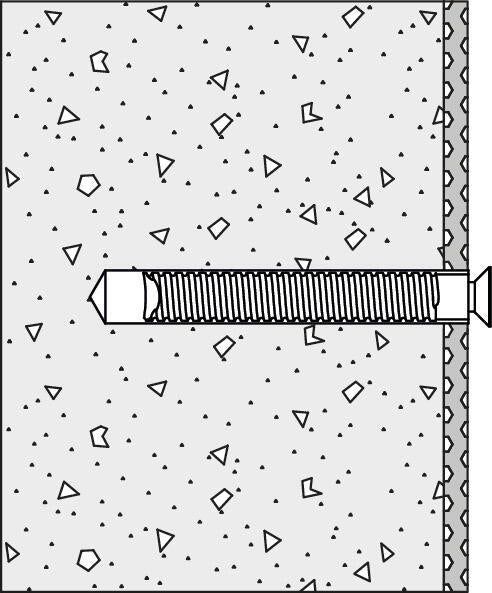

For fastening to concrete walls (> C20/C25)
Consisting of:
- 3 stainless steel screws M 10 x 30 mm
- 3 threaded sleeves M 10 x 110 mm
- 3 washers diameter 22 x 5 mm
General building inspection approval number: ETA-11/0493
To be provided separately:
injection mortar (HEWI order no.: 200311)
or to be ordered on site:
Hilti HIT-HY 200-A injection mortar
Specifikace
| Číslo položky | 842BM173 |
|---|---|
| Značka | HEWI |
| Hmotnost | 0.25 kg |
