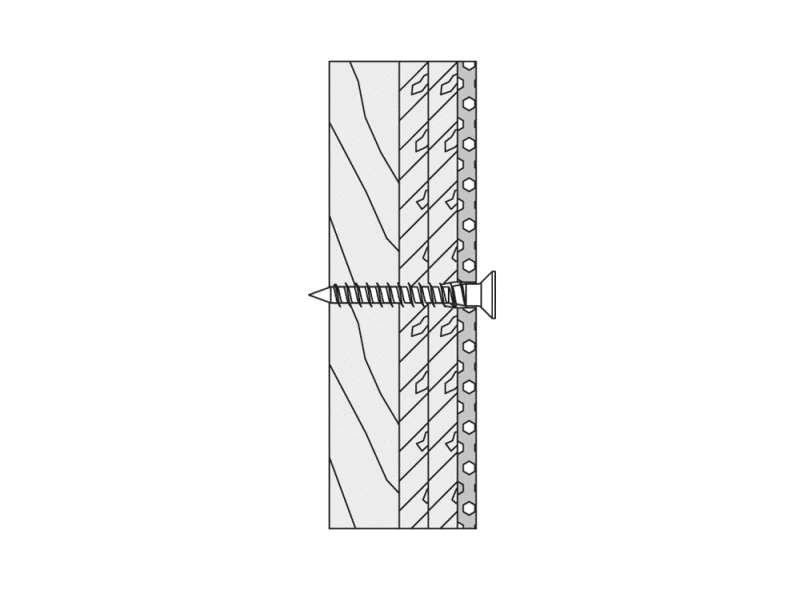

HEWI mounting method for wall supports and hinged support rails of the 802 LifeSystem series and for hinged seats of the 802 LifeSystem and System 900 series
for mounting on lightweight walls with a frame of multiplex panels (waterproof glued, min. 30 mm thick required, e.g. supporting structure from the front wall installation manufacturer
Consisting of: 3 stainless steel countersunk screws diameter 10 x 95 mm and 3 washers diameter 22 x 5 mm.
Recommended design! Please check the condition of the wall on site when ordering!
Specifikace
| Číslo položky | 842BM123 |
|---|---|
| Značka | HEWI |
| Hmotnost | 0.151 kg |
