Type of fastening
- for wall supports and hinged support rails from the 802 LifeSystem series
- for hinged seats from the 802 LifeSystem and System 900 series

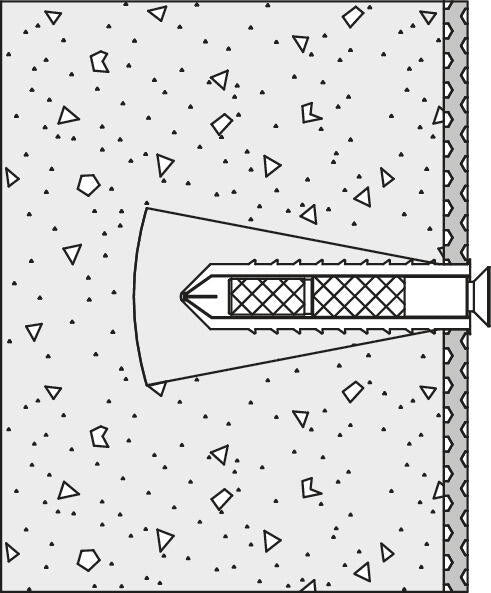

For fastening to aerated concrete walls (> P2)
Comprising:
- 3 stainless steel screws M 10 x 30 mm
- 3 mesh sleeves Hit-SC 22 x 85 mm
- 3 threaded sleeves HIT-IC
- 3 washers diameter 22 x 5 mm
To be provided additionally:
injection mortar (HEWI order no.: 200266)
or to be ordered on site:
injection mortar HIT-HY 270 from Hilti
Standard undercut drill 22/100
Specifikace
| Číslo položky | 842BM113 |
|---|---|
| Značka | HEWI |
| Hmotnost | 0.227 kg |
