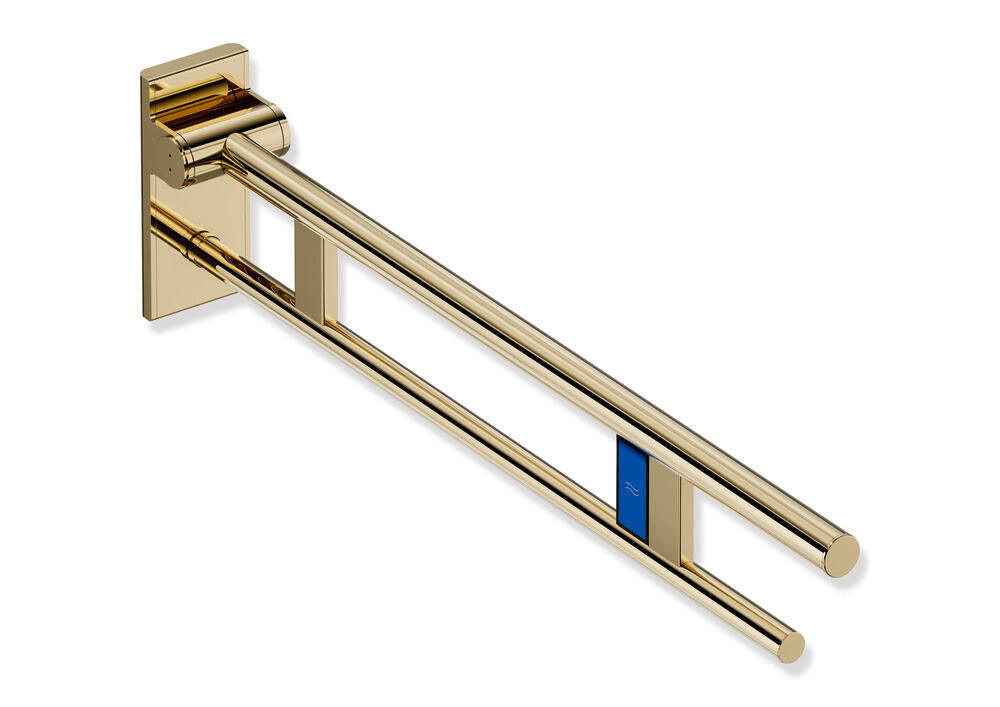

Mobile hinged support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with radio flush release
- left-hand version
- Can be folded up and braked down
- mobile use
- for easy and flexible retrofitting to existing, pre-assembled mounting plate 900.50.00170, must be ordered separately
- tool-free and quick assembly by simply hanging the hinged support rail
- secured against unintentional detachment with fastening screws
- tested to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Blue button (wave symbol) is used to activate the toilet flush
- Transmitting frequency 868.4 MHz
- Suitable for wireless toilet flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Projection 850 mm, 210 mm wide and 101 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, PVD coating
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- is produced in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 8429005042070.CK |
|---|---|
| Značka | HEWI |
| Hmotnost | 5.48 kg |
| Barva | Mosaz |
| Materiál | Nerez |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Systeem 900 |
| Povrchová úprava | PVD-coating glanzend |
