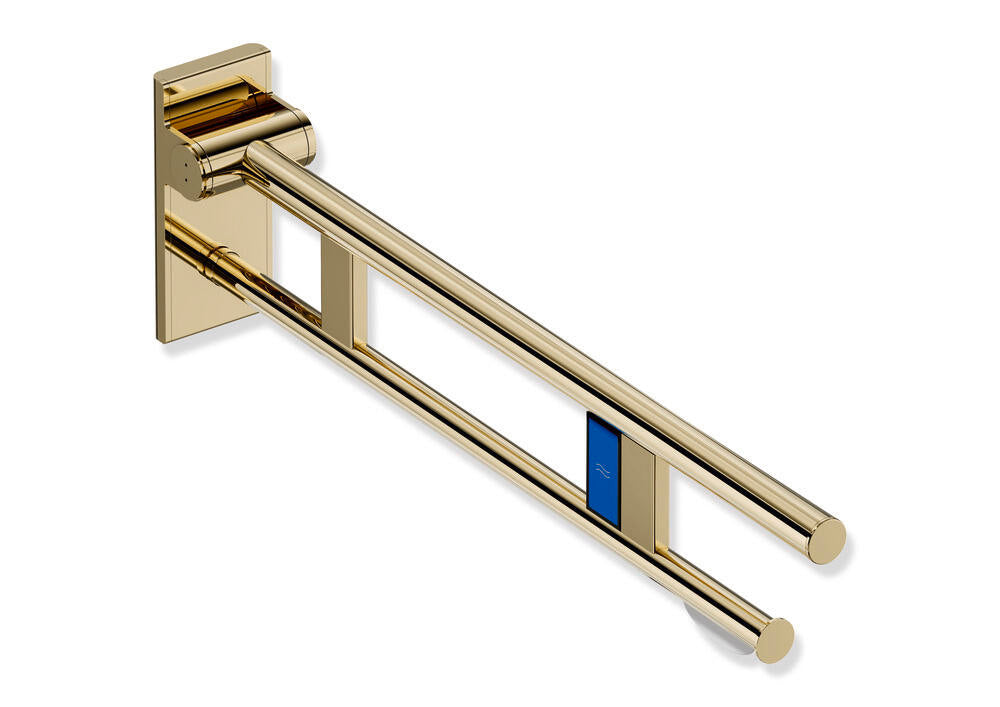

HEWI 900.50.41170 CK

Mobile hinged support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with toilet roll holder and wireless flush release
- left-hand version
- Can be folded up and braked down
- mobile use
- for simple and flexible retrofitting on an existing, pre-assembled mounting plate 900.50.00170, to be ordered separately
- tool-free and quick installation by simply hanging the folding support
- secured against unintentional detachment with fixing screws
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Blue button (wave symbol) is used to activate the toilet flush
- Transmitting frequency 868.4 MHz
- Suitable for wireless toilet flushing systems from Geberit, Mepa, Viega, Sanit, Friatec, TECE and Grohe
- Projection 750 mm, 210 mm wide and 101 mm high, Top rail diameter 33.7 mm, Bottom rail diameter 25 mm
- made of high-quality stainless steel, PVD coating
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- complies with the requirements applicable in Belgium (CWATUPE, WVG Flanders) regarding the projection of the folding support rail on the toilet
