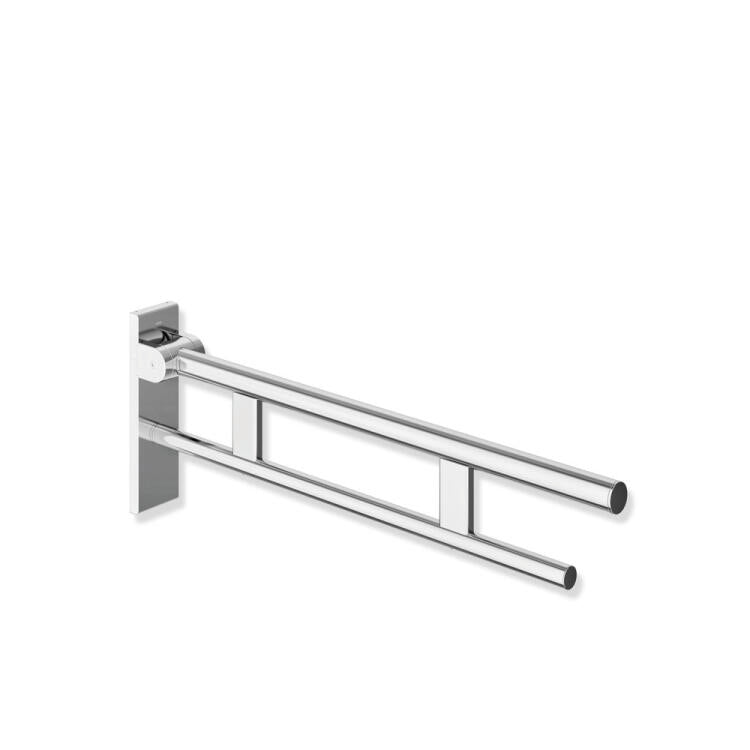

Fold-up support rail Duo, Design (B), System 900
- Two parallel, superimposed circular gripping sections
- Can be folded up and braked down
- Projection 700 mm, 256 mm wide and 75 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, chrome-plated
- Wall plate made of polyamide with integrated steel core and cover made of chrome-plated stainless steel
- for mounting with corrosion-free and tested HEWI fastening material for various wall mounts (to be ordered separately)
- sealing tape for sealing the fastening points is included in the delivery
- tested to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02040 and 900.50.02140 can be retrofitted
- is manufactured in accordance with CE and UKCA regulation (EU) 2017/745 on medical devices
- Complies with the requirements of ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 8429005015940 |
|---|---|
| Značka | HEWI |
| Hmotnost | 4.236 kg |
| Barva | Chrom |
| Materiál | Nerez |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Systeem 900 |
| Povrchová úprava | Verchroomd hoogglans |
