HEWI 900.50.14370 CK

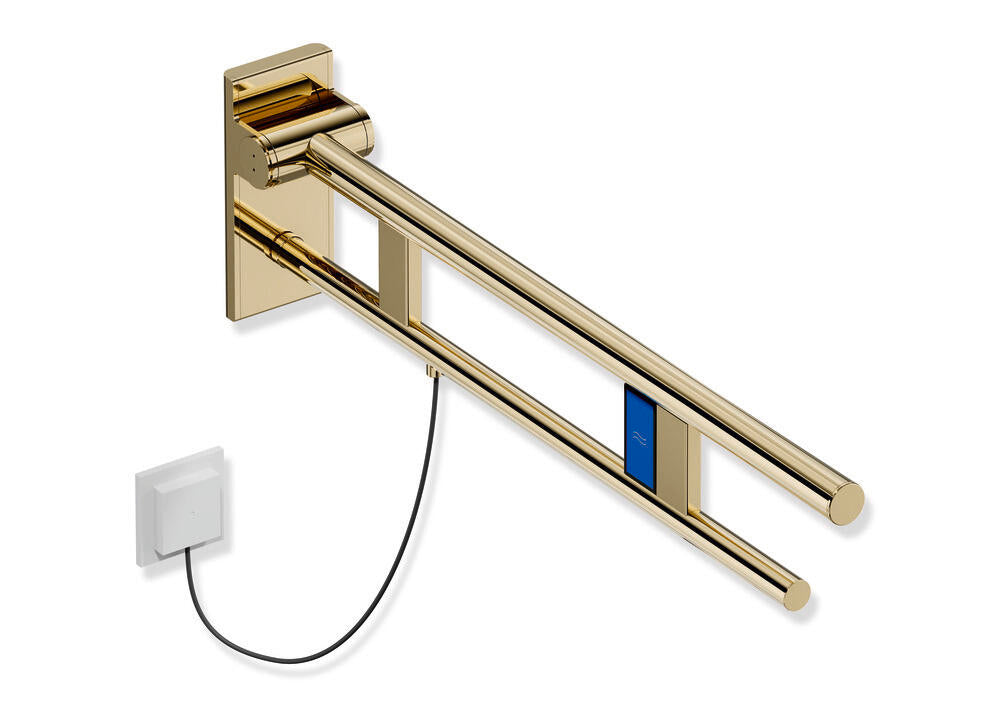

Fold-up support rail Duo, Design (A), System 900
- Two parallel, superimposed circular gripping sections
- with flush release (electrical version)
- left-hand version
- Can be folded up and braked down
- Blue button (wave symbol) is used to activate the toilet flush
- Cable with free cable ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all common concealed cisterns with electrical control
- Projection 750 mm, 210 mm wide and 101 mm high, Diameter upper rail 33.7 mm, Diameter lower rail 25 mm
- made of high-quality stainless steel, PVD coating
- for mounting with corrosion-free and tested HEWI fastening material for various wall mounts (to be ordered separately)
- sealing tape for sealing the fastening points is included in the scope of delivery
- tested to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02070 and 900.50.02170 can be retrofitted.
- is manufactured in accordance with the CE and UKCA regulation (EU) 2017/745 concerning medical devices
- complies with the requirements applicable in Belgium (CWATUPE, WVG Flanders) regarding the projection of the foldable support handle on the WC
