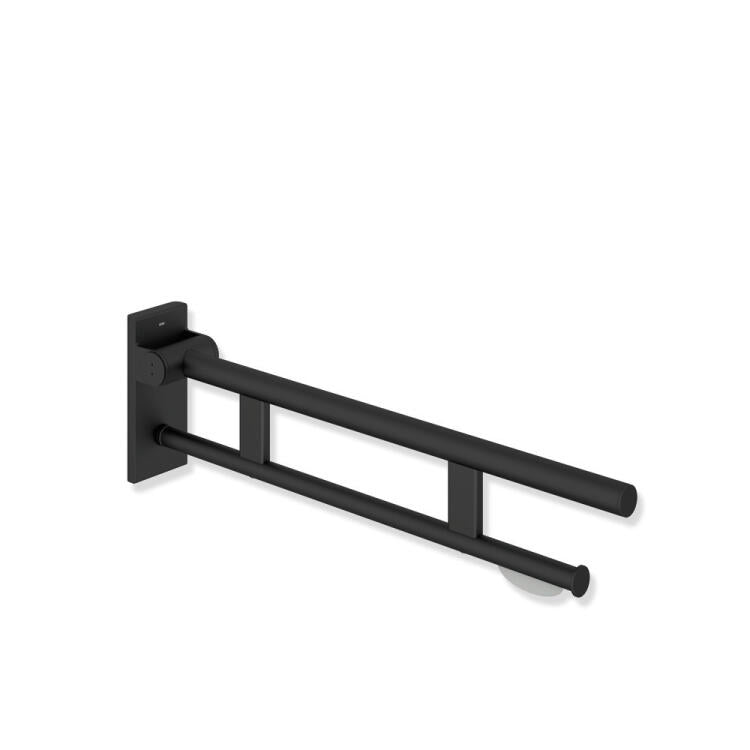

Fold-up support rail Duo, Design (A), System 900
- Two parallel, superimposed round grip sections
- with toilet roll holder
- Can be folded up and braked downwards
- Projection 700 mm, 210 mm wide and 101 mm high, Top rail diameter 33.7 mm, Bottom rail diameter 25 mm
- made of high-quality stainless steel, powder-coated in HEWI colors DX (deep matt white), DC (deep matt black) and SC (deep matt dark gray pearl mica)
- for mounting with corrosion-free and tested HEWI fixing material for various wall mounts (to be ordered separately)
- sealing tape for sealing the fixing points is included in the scope of delivery
- tested up to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Floor supports 900.50.02060 and 900.50.02160 can be retrofitted.
- is manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 8429005010660.DC |
|---|---|
| Značka | HEWI |
| Hmotnost | 5.04 kg |
| Barva | Černá |
| Materiál | Nerez |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Systeem 900 |
| Povrchová úprava | Poedercoating mat |
