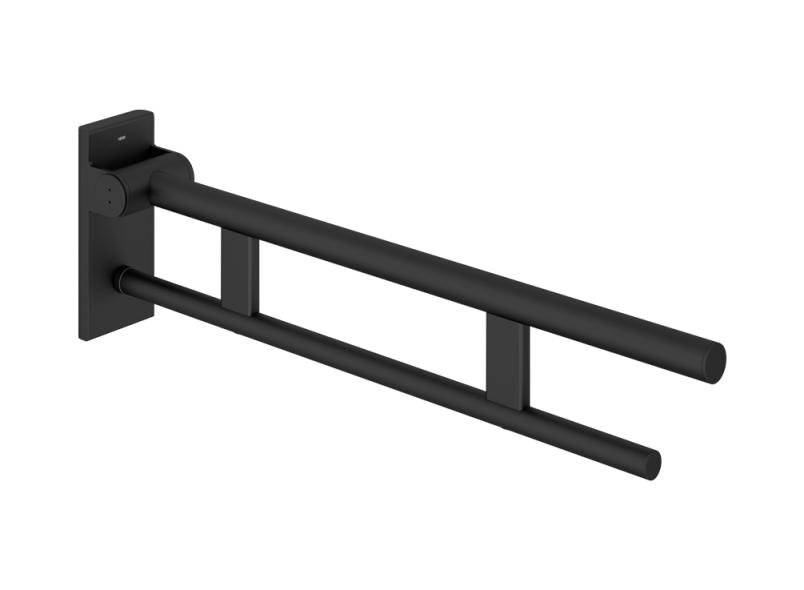

Fold-up support rail Duo, Design (A), System 900 - Two parallel, superposed circular grip sections - Can be folded up and braked down - Swivel range 850 mm, 210 mm wide and 101 mm high, Top rail diameter 33.7 mm, Bottom rail diameter 25 mm - made of high-quality stainless steel, powder-coated in HEWI colour DC (deep matt black) - for mounting with corrosion-free and tested HEWI fixing material for various wall mounts (to be ordered separately) - sealing tape for sealing the mounting points is included in the scope of delivery - tested up to 150 kg when used with HEWI fixing material - Recommended maximum user weight: 150 kg - Floor supports 900.50.02060 and 900.50.02160 can be retrofitted.
- manufactured in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices - Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
- manufactured in accordance with the CE and UKCA Regulation (EU) 2017/745 on medical devices - Complies with the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 8429005010460.DC |
|---|---|
| Značka | HEWI |
| Hmotnost | 5.38 kg |
| Barva | Černá |
| Materiál | Nerez |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Systeem 900 |
| Povrchová úprava | Poedercoating mat |
