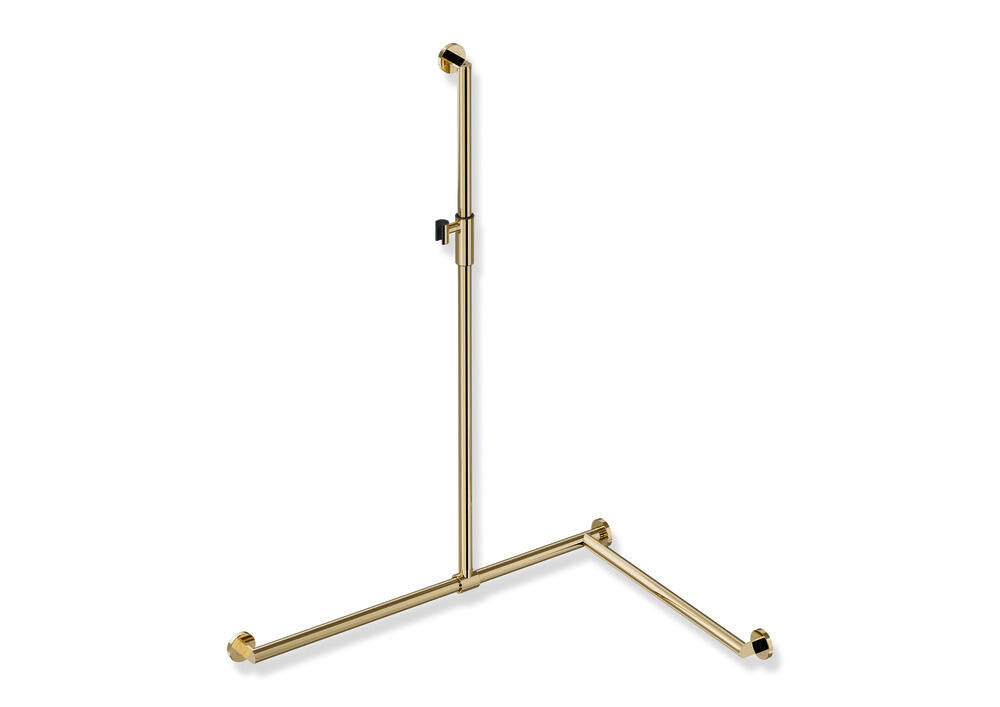

HEWI 900.35M36170 CK

Shower grab rails with adjustable shower slider, System 900, Corner mounting
- vertically and horizontally arranged, at right angles connected rails with mounting roses and magnetic shower head holder
- with laterally (for mounting) adjustable shower rail
- right-hand version
- vertical length 49 3/16 inch (1250 mm), Horizontal lengths (corner mounting) 37 5/16 inch (947 mm) and 25 1/2 inch (647 mm), 70 mm deep
- Rod diameter 1 1/4 inch (32 mm), Tube thickness 1/16 inch (2 mm), Rose diameter 2 3/4 inch (70 mm)
- made of high-quality stainless steel, PVD coated
- shower head holder made of high-quality stainless steel, PVD coated
- Suitable for hand showers from various manufacturers
- simple and intuitive one-hand operation
- shower head holder can be moved continuously, automatic attachment by magnets
- wear-free clamping mechanism
- conical holder on the shower head holder can be tilted continuously
- reduced number of mounting roses due to innovative corner connection
- including corrosion-free and tested HEWI fixing material for wall mounting and sealing tape for sealing the drill holes
- Please note when using with hanging seats: A compatibility check is required.
- A detailed list of the possible combinations of wall supports, corner supports and shower and bath grab rails with suitable hanging seats can be found in our online catalogue in the download section of the respective product.
- meets the requirements according to 2010 ADA standards and ICC/ANSI A117.1-2017
