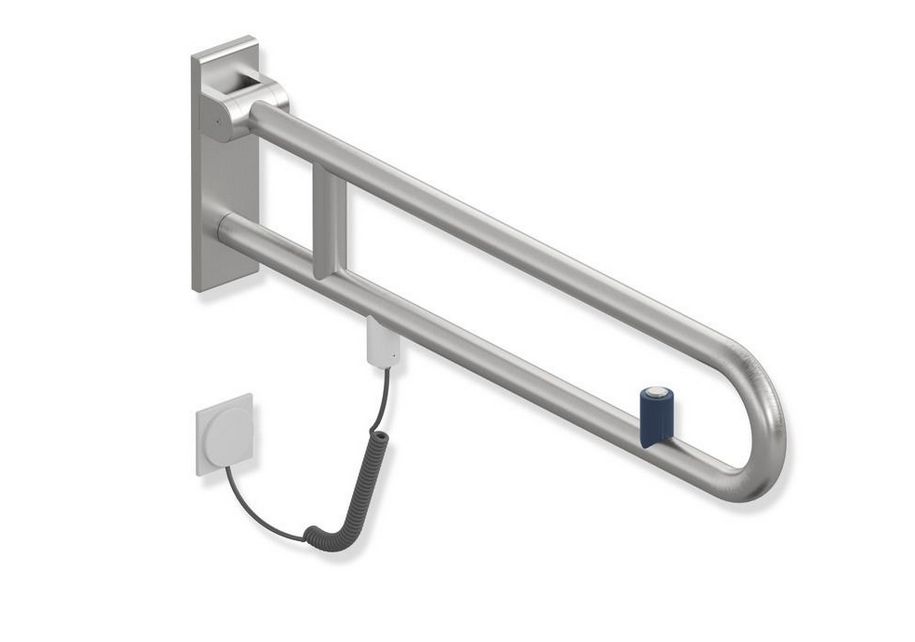

HEWI 805.50.760

Fold-up support rail from the 805 classic series
- with integrated flush, E-version
- Two parallel bars, one above the other, connected by a connecting bend (formed from a continuous tube)
- Used for holding and supporting - Wall plate made of polyamide with integrated steel core
- Can be folded up and braked down
- Blue button to activate the toilet flush
- Coiled cable with free cable ends for wall connection
- incl. white cover for flush-mounted box
- Control voltage max. 30 V = SELV, PELV, switching current up to max. 2 A
- suitable for all common concealed cisterns with electrical control
- Wall mounting with wall-specific HEWI fastening material (to be ordered separately)
- sealing tape for sealing the fastening points is included in the delivery
- Concealed fastening
- tested up to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 850 mm, 259 mm wide and 78 mm high, bar diameter 33 mm, tube thickness 2 mm
- made of high-quality stainless steel, surface brushed matt
- Toilet roll holder 805.50.015 and floor supports 950.50.022XA and 950.50.024XA can be retrofitted
- Manufactured in accordance with Regulation (EU) 2017/745 on medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
