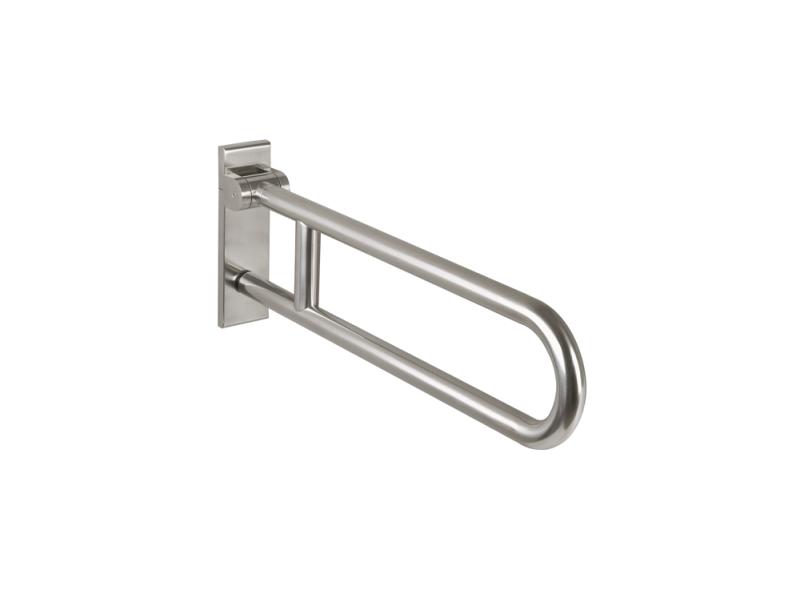

HEWI 805.50.120

Fold-up support, swivel from the 805 Classic series
- Two parallel, superposed bars connected by a connecting bend (formed from a continuous tube)
- Used for holding and supporting - Wall plate made of polyamide with integrated steel core
- Can be folded up and braked down, and when folded up, can be swiveled to the left or right towards the wall
- Wall mounting with HEWI mounting material specific to the wall (to be ordered separately)
- Sealing tape for sealing the mounting points is included in the delivery
- Concealed mounting
- Tested up to 150 kg when used with HEWI mounting material
- Recommended maximum user weight: 150 kg
- Swivel range 850 mm, 259 mm wide and 78 mm high, rod diameter 33 mm, tube thickness 2 mm
- Made of high-quality stainless steel, surface matt brushed
- Toilet roll holder 805.50.015 and toilet flush release (radio) 805.50.060 and floor supports 950.50.022XA and 950.50.024XA can be retrofitted.
- Is manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Meets the requirements of DIN 18040, ÖNORM B1600/1601 and SIA 500
