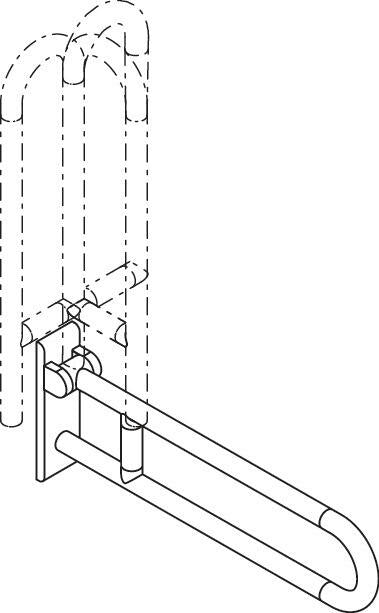

Fold-up support rail, swivelling, from the 801 series
- Two parallel, superimposed rails connected by a curved section
- For holding and supporting - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded up and down with braking action and, when folded up, pivoted to the left or right against the wall
- Wall mounting with HEWI-specific fastening material (to be ordered separately)
- Sealing tape for sealing the fixing points is included in the scope of supply
- Concealed fixing
- Tested up to 150 kg when used with HEWI fixing material
- Recommended maximum user weight: 150 kg
- Projection 700 mm, 259 mm wide and 78 mm high, rail diameter 33 mm
- Made of high-gloss polyamide according to the HEWI colour chart
- Toilet roll holder 801.50.011, WC flush mechanism (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- Is manufactured in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of ÖNORM B1600/1601 and SIA 500
Specifikace
| Číslo položky | 84280150110.86 |
|---|---|
| Značka | HEWI |
| Hmotnost | 4.569 kg |
| Barva | Písek |
| Materiál | Ocelové jádro+polyamid |
| Montáž | Povrchová montáž |
| Kolekce | HEWI Serie 801 |
| Povrchová úprava | Hoogglans |
