HEWI 801.50.100 95

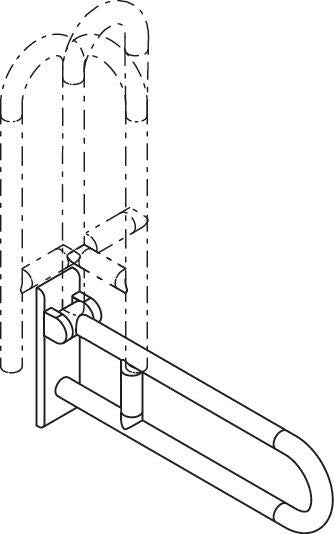

Fold-up support rail, swivelling, from the 801 series
- Two parallel, superimposed rails connected by a connecting bend
- For holding and supporting - with continuous, corrosion-resistant steel core and wall plate made of polyamide with integrated steel core
- Can be folded up and braked down and can be swivelled to the left or right against the wall in the folded-up position
- Wall mounting with HEWI-specific fastening material (to be ordered separately)
- Sealing tape for sealing the fixing points is included
- Concealed fastening
- Tested to 150 kg when used with HEWI fastening material
- Recommended maximum user weight: 150 kg
- Projection 600 mm, 259 mm wide and 78 mm high, rail diameter 33 mm
- Made of high-gloss polyamide according to the HEWI colour chart
- Toilet roll holder 801.50.011, WC flush actuation (radio) 801.50.060 and floor supports 950.50.021XA and 950.50.023XA can be retrofitted
- Produced in accordance with CE and UKCA Regulation (EU) 2017/745 on medical devices
- Complies with the requirements of DIN 18040
