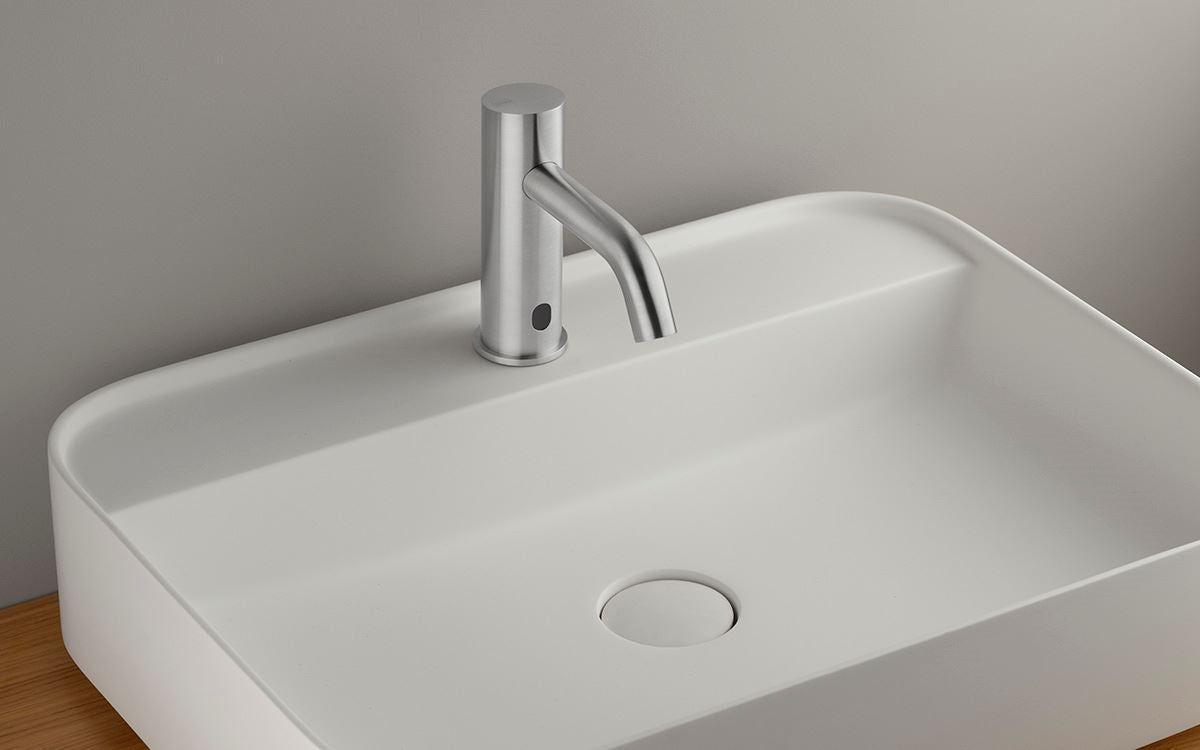

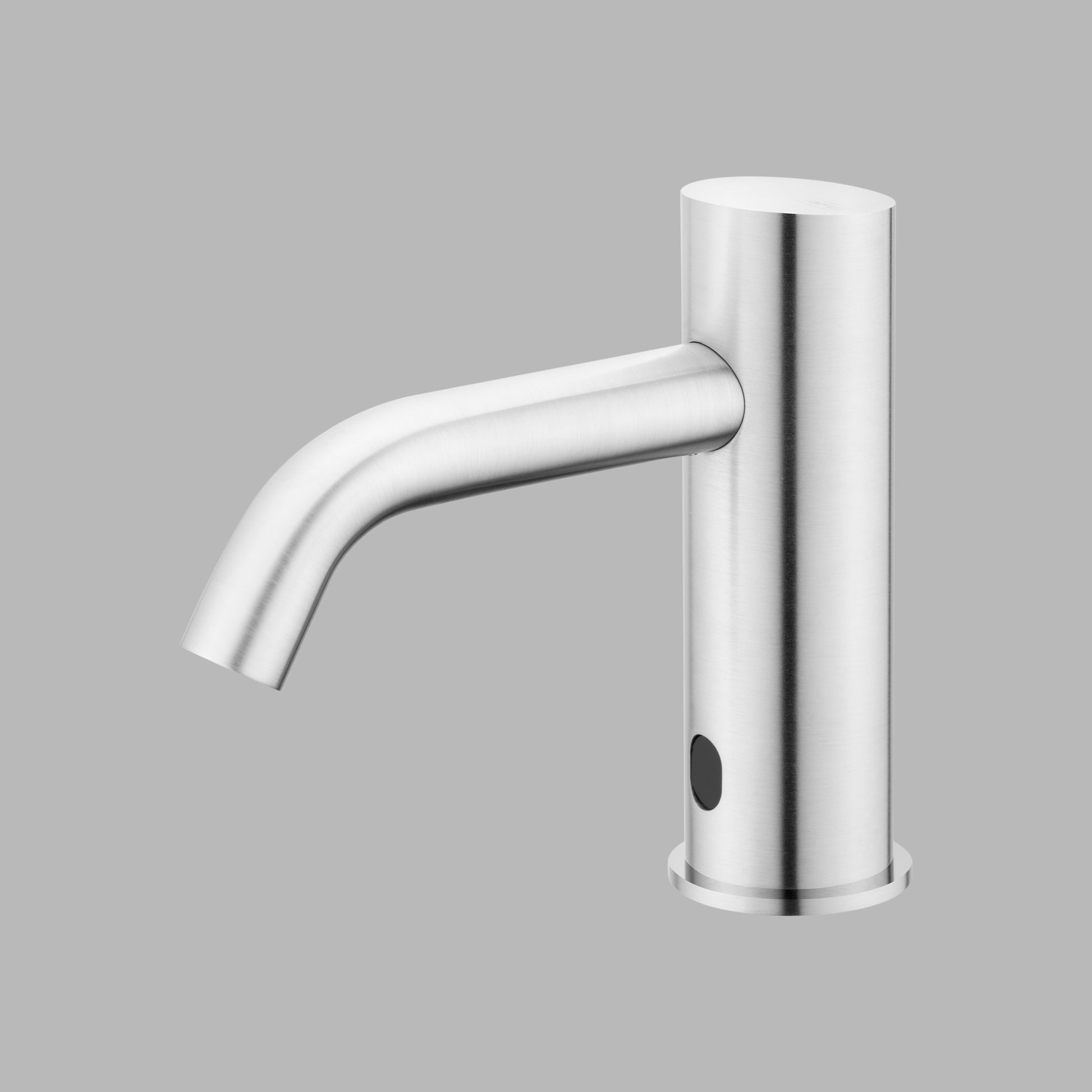

d line Qtoo infrared sensor basin mixer, stainless steel AISI 316, satin.
Projection: 130mm - 5 1/8''
Fixed spout
Built-in aerator
Total height: 145mm - 5 45/64"
Height to aerator: 70mm- 2 3/4''
Max. flow: 5L - 1.3gpm
Sensor features:
Sensor operating detection distance: 50mm to 250mm
Comfort time: 2 seconds (+/- 20%)
Safety time-out: 30 seconds (+/- 20%)
Flow rate 5 L/min (others available on request)
Battery life (6 AA): 20 daily activations = 8.4 years, 150 daily activations = 4.6 years
Low battery: 1 flash every 5 seconds (10 days)
Dead battery: 1 flash every 5 seconds (until battery is completely dead - and then no water supply)
Cleaning mode 60 sec.
Hygiene flush disabled
Special setting parameters on request: Operating detection distance, Safety time-out (deactivated or 1-240 sec.), Comfort time (0-100 sec.), Hygiene flush, Frequency (1 h - 72 h), Duration (1 - 240 sec.)
Mandatory accessories:
QSF01 Premix flexbox or QSF01 Single flow Flexbox
Optional accessories:
QSP01 Power supply for flexbox
Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. To maintain the unique d line finish, please follow the instructions below:
Wash surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use abrasive powders, steel wool, chlorine-based cleaners or other aggressive cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, this is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions or incorrect or insufficient cleaning.
Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. To maintain the unique d line finish, please follow the instructions below:
Wash surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use abrasive powders, steel wool, chlorine-based cleaners or other aggressive cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, this is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions or incorrect or insufficient cleaning.
Projection: 130mm - 5 1/8''
Fixed spout
Built-in aerator
Total height: 145mm - 5 45/64"
Height to aerator: 70mm- 2 3/4''
Max. flow: 5L - 1.3gpm
Sensor features:
Sensor operating detection distance: 50mm to 250mm
Comfort time: 2 seconds (+/- 20%)
Safety time-out: 30 seconds (+/- 20%)
Flow rate 5 L/min (others available on request)
Battery life (6 AA): 20 daily activations = 8.4 years, 150 daily activations = 4.6 years
Low battery: 1 flash every 5 seconds (10 days)
Dead battery: 1 flash every 5 seconds (until battery is completely dead - and then no water supply)
Cleaning mode 60 sec.
Hygiene flush disabled
Special setting parameters on request: Operating detection distance, Safety time-out (deactivated or 1-240 sec.), Comfort time (0-100 sec.), Hygiene flush, Frequency (1 h - 72 h), Duration (1 - 240 sec.)
Mandatory accessories:
QSF01 Premix flexbox or QSF01 Single flow Flexbox
Optional accessories:
QSP01 Power supply for flexbox
Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. To maintain the unique d line finish, please follow the instructions below:
Wash surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use abrasive powders, steel wool, chlorine-based cleaners or other aggressive cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, this is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions or incorrect or insufficient cleaning.
Product care
d line products are manufactured from the highest quality AISI 316 stainless steel. To maintain the unique d line finish, please follow the instructions below:
Wash surfaces with soapy water or a mild detergent.
Always rinse thoroughly with clean water.
To complete the cleaning procedure, dry/polish the surface with a soft dry cloth.
Do not use abrasive powders, steel wool, chlorine-based cleaners or other aggressive cleaning agents, as these may damage the surface.
If stains or corrosion appear on the surface, this is not due to the quality of the stainless steel, but to impurities in the environment, aggressive conditions or incorrect or insufficient cleaning.
Specifikace
| Číslo položky | 825QST1150M |
|---|---|
| Značka | d line |
| Hmotnost | 1.5 kg |
| Ovládání | Touchless |
| Barva | Nerez |
| Materiál | Nerez |
| Montáž | Do umyvadla/desky |
| Napájení | Batterijen |
| Kolekce | d line Qtoo |
| Povrchová úprava | Geborsteld |
