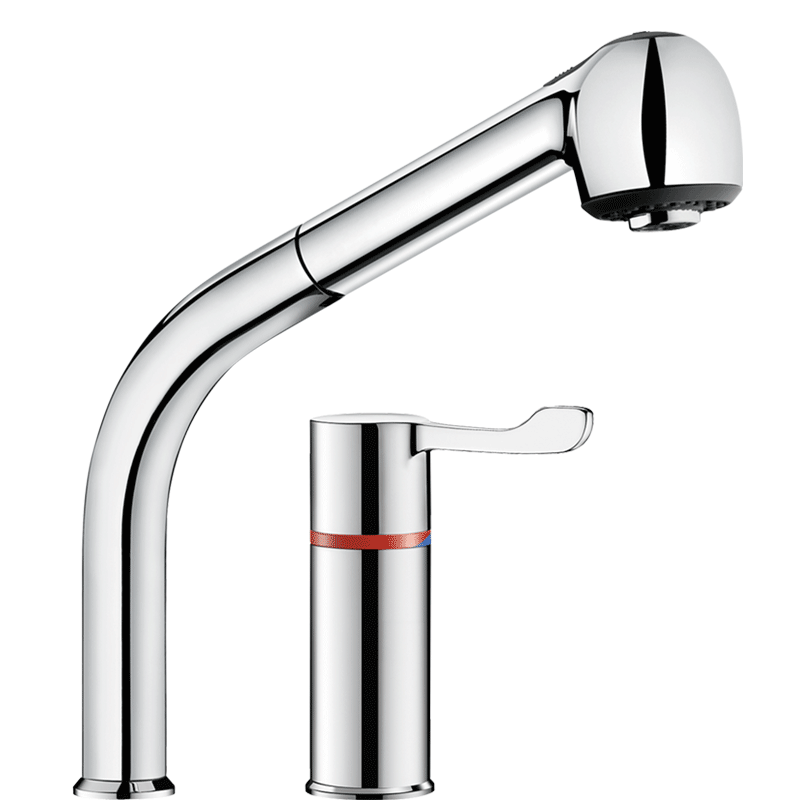

DELABIE H9613BEL

SECURITHERM Thermostatic basin mixer combination

Combination with single lever mixer and column

Combination with SECURITHERM sequential thermostatic mixer and column with pull-out hand spray.
Perfectly suited for baby baths.
Anti-scalding safety: automatic shut-off in case of cold or hot water supply failure.
Securitouch thermal anti-scalding insulation.
Sequential: opening and closing on cold water.
No risk of backflow between hot and cold water.
Swivelling column H.200 L.220.
Pull-out hand spray with 2 jets and diverter between aerated flow/rain.
Sequential thermostatic anti-limescale mechanism for flow and temperature control with a single lateral action.
Adjustable temperature: from cold water up to 40°C with temperature limitation set at 40°C.
Smooth interior body and column.
Flow rate set at 7 l/min.
Hands-free operation with hygienic lever L.100.
Mixed water outlet in brass L.160.
BIOSAFE anti-bacterial hose: transparent polyurethane, smooth inside and outside, limited capacity (internal Ø 6).
Specific counterweight.
PEX flexibles F3/8" with filters and check valve on the cold water supply.
Reinforced fastening with 2 stainless steel rods.
Suitable for people with reduced mobility.
30-year warranty.

Connection	F3/8"
Technology	SECURITHERM single lever operation, Securitouch

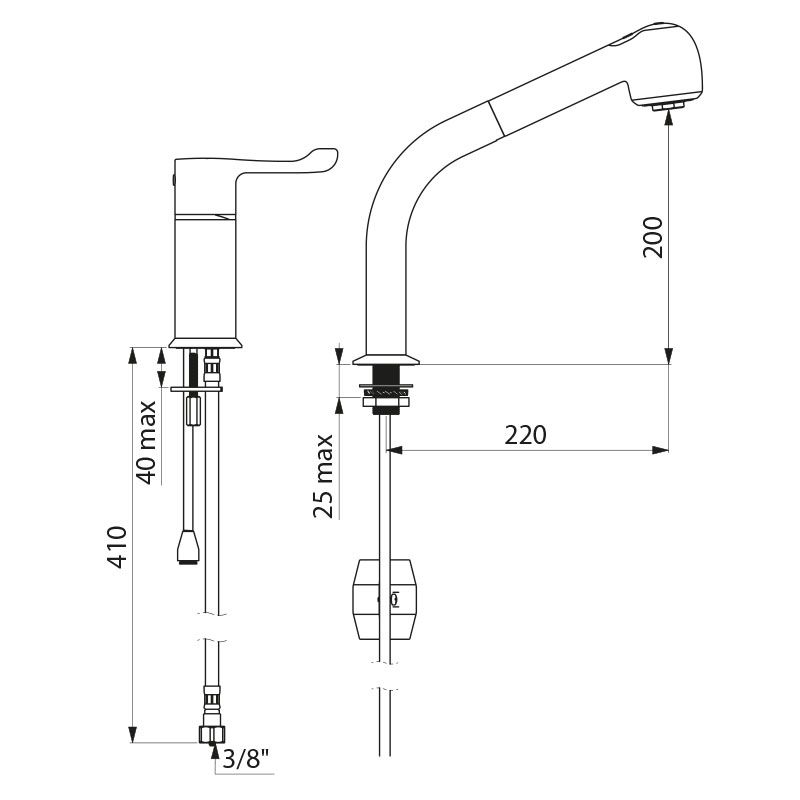

Spout height	200 mm
Spout length	220 mm
Flow rate	7 l/min
Temperature limit	40°C
Finish	Chrome-plated brass
Standards and certificates
Warranty
Repair warranty
