TEMPOFIX 3 self-supporting frame system for toilet
For TEMPOMATIC electronic mains-powered tap - Outlet Ø90

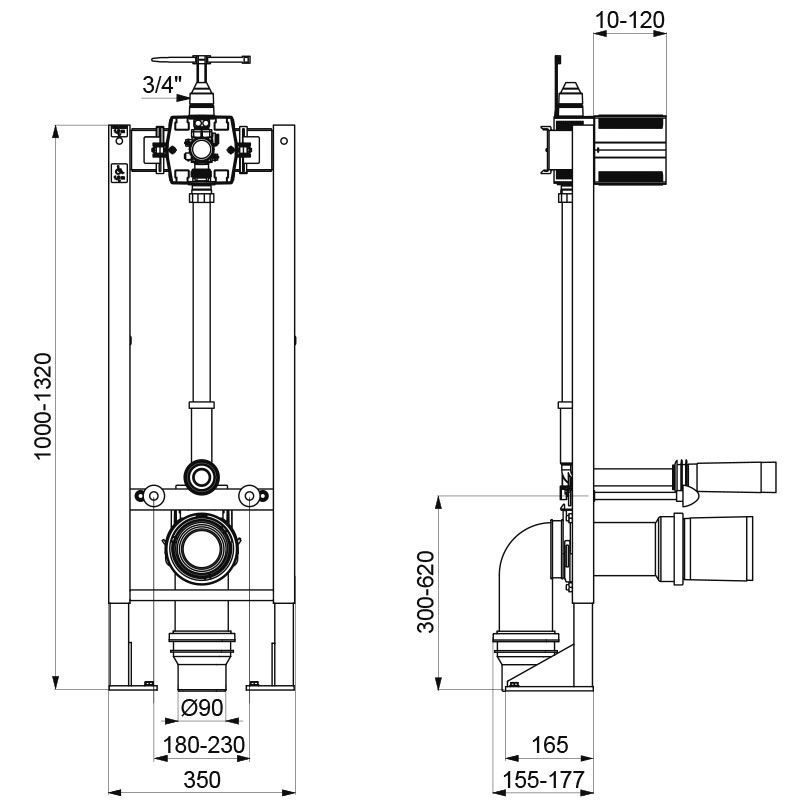

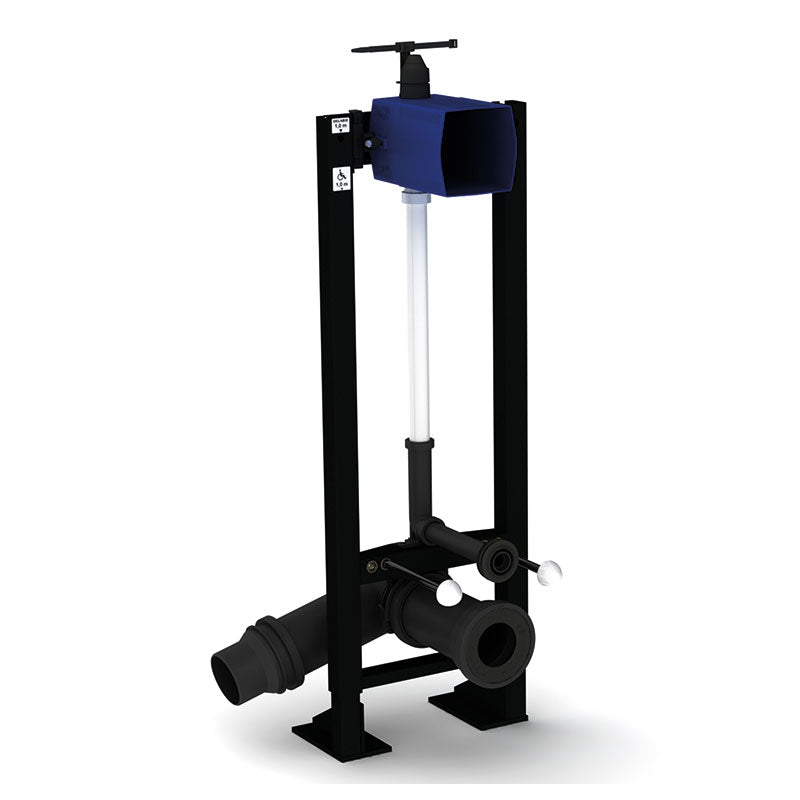

Self-supporting frame system for wall-hung toilets, set 1/2:
Frame system in black epoxy steel:
- With wide feet for support on the floor.
- Chassis height adjustable between 0 and 200 mm (with label at 1 m).
- For walls between 10 and 120 mm.
- Flush pipe Ø 32 with supply seal Ø 55.
- ABS waste pipe with PE100 Ø 90 waste socket with sealing ring, with two adjustment points.
Waterproof recessed box: for flushing system without cistern thanks to direct connection to the water supply.
- For electronic toilet taps with dual control.
- Mains power supply 230/6 V.
- Air vent built into the recessed box.
- Integrated stopcock and flow control.
Delivered pre-assembled.
Conforms to NF D12-208 standard.
30-year warranty.
To be ordered with control plates references 464000 or 465000.
| Connection | 3/4" |
| Technology | Electronic and self-closing |
| Height | 1000 to 1320 mm |
| Depth | 157 - 177 mm |
| Width | 350 mm |
| Diameter | Outlet Ø 90 |
| Finish | Black epoxy steel |
| Standards and certifications |  |
| Warranty |  |
Specifikace
| Číslo položky | 8146564005BE |
|---|---|
| Značka | Delabie |
| Hmotnost | 14.3 kg |
