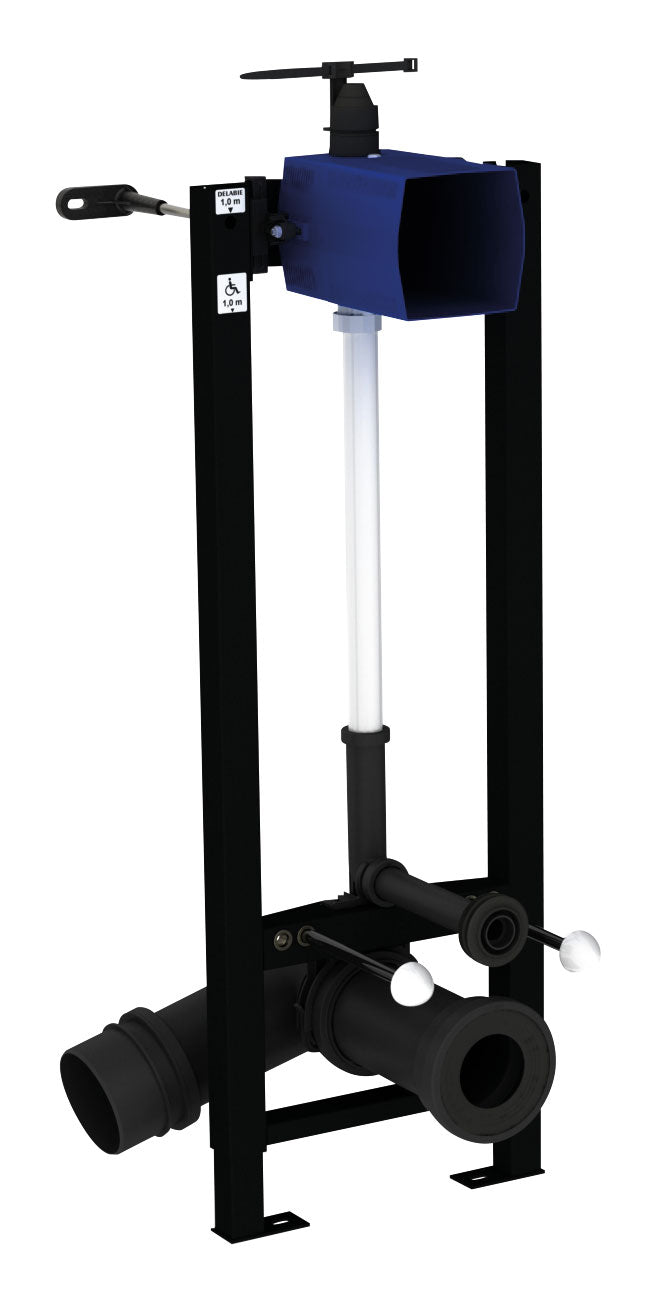

TEMPOFIX 3 frame with wall fixing for WC
For TEMPOMATIC electronic mains-powered tap - Outlet Ø110
Wall-hung frame l.350 for wall-hung WC, kit 1/2:
Pre-wall system in black epoxy-coated steel:
- Wall mounting.
- Frame height adjustable between 0 and 200mm (with 1m marking).
- For walls between 10 and 120mm.
- Flushing pipe Ø 32 with supply seal Ø 55.
- ABS waste pipe with PEHD Ø 110 connection sockets with sealing ring, with 2 adjustment points.
Waterproof recessed housing: for flush system without cistern, directly connected to the water mains.
- Compatible with TEMPOMATIC dual control or Connect electronic taps for WC.
- Mains power supply 230/6 V.
- Built-in air vent, in the recessed housing.
- Integrated stopcock and flow control.
Delivered pre-assembled.
Complies with standard NF D12-208.
30-year warranty.
Order with control plates reference 464000, 464050, 465000 or 465050.

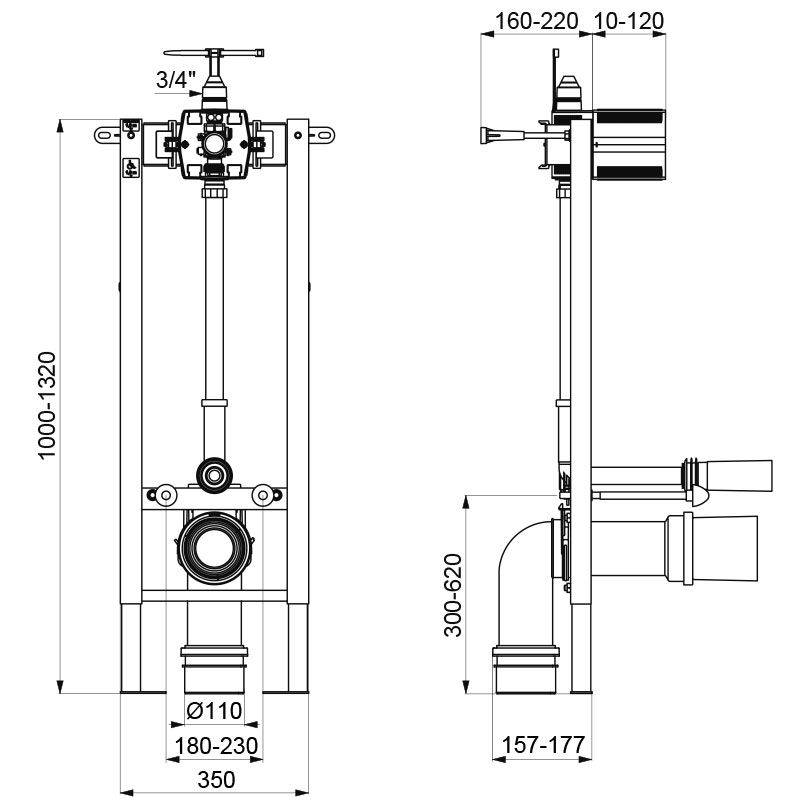

| Connection | 3/4" |
| Technology | Electronic and self-closing |
| Height | 1000 to 1320 mm |
| Depth | 157 - 177 mm |
| Width | 350 mm |
| Diameter | Outlet Ø 110 |
| Finish | Black epoxy-coated steel |
| Warranty |  |
Specifikace
| Číslo položky | 8146564000DE |
|---|---|
| Značka | Delabie |
| Hmotnost | 10.4 kg |
