CONTI CONE1181219580

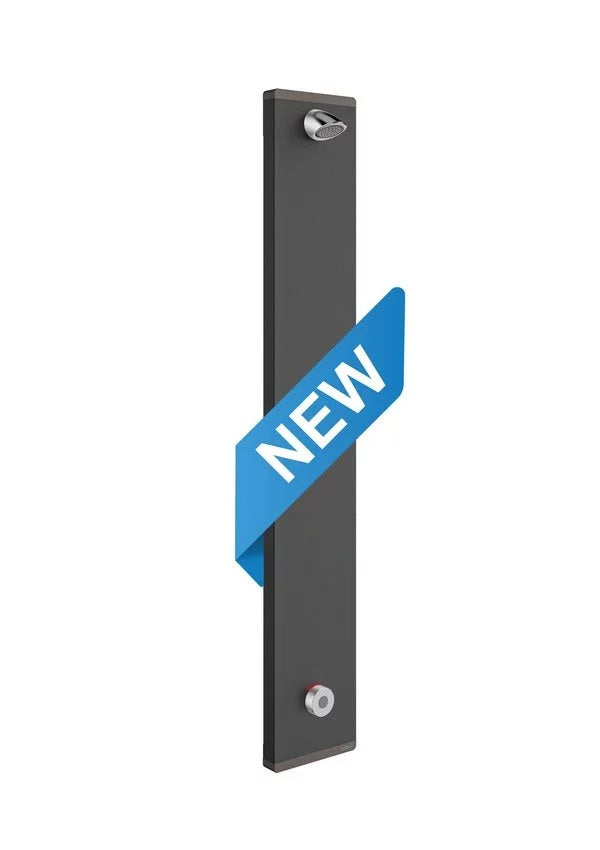

CONPRIMUS shower panel GRAPHITE black line APP Thermostat-E, E-control, mains power, KWH flush, cleaning stop, hygienic flush, piezo button, mains power, thermostat, DN15.
Shower panel with electronically controlled mixing unit, including scald protection, for wall mounting. Application in new construction and renovation in commercial, semi-public and public sanitary facilities.
Operating voltage (mains power, multiple installation): 24 V/DC
Operating pressure: 2.0-5.0 bar
Water temperature (max.): 70 °C (briefly for TD 80 °C)
Water temperature thermal disinfection: briefly for thermal disinfection 80 °C
Flow rate DN15: 0.15 l/s (flow restrictor)
Flow rate for thermal disinfection DN15: 0.05 l/s - adjustable via Service APP and CNX, please note the maximum water temperature). Memory temperature setting: after the shower time has elapsed (or stopping by pressing the piezo button again), the set temperature remains stored for 30 seconds
Water flow time setting range: 3 – 180 s
Factory setting water flow time: 30 s
Hygienic flush setting range: factory setting: deactivated, 24, 48 or 72 hours, adjustable via piezo button, CNX or Service APP
Pre-set temperatures: Standby temperature when the piezo button is pressed 38 °C (can be set from 100% cold to max. 43 °C (temperature range) via E-Control rotary knob. If the cold water line fails, the water supply is stopped when 48 °C is reached (factory setting)
Memory temperature setting: After the shower time has elapsed (or stopping by pressing the piezo button again), the set temperature remains stored for 30 s.
Electronic protection class: IP68
Dimensions (WxHxD): 220x1400x40 mm
Required accessories:
CONO513000 - Power supply 24V/DC 4.2 A installation box (Power supply 24V/DC 4.2 A installation box)
CONO030010 - CONHEAD rain shower head SHORTY, for shower elements, chrome-plated brass, DN15 (CONHEAD SHORTY Shower panel Chrome)
